Container Dimension

Dry or Dry Van (DV) or General Purpose (GP) – 20′, 40′ – general containers that doesn’t have any special features and used to load normal general cargo.

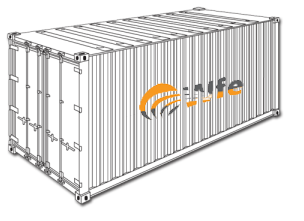

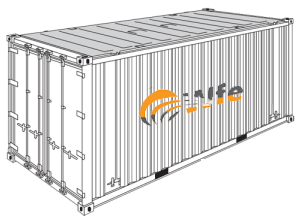

20′ Dry Container

Payload: 38,600 lbs or 17,508kgs

Internal Specification

Cubic Capacity: 1,164cu.ft

Length: 19' 5''

32.96cbm

Width: 7' 8 3/9"

Height: 7' 9 5/8"

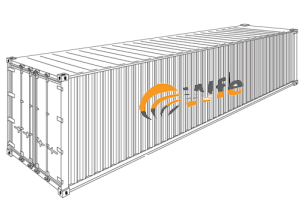

40′ High Cube Container

Pay load: 67,196 lbs or 30,480 kgs

Internal Specification

Cubic Capacity: 2,387cu.ft

Length: 39' 5"

67.6cbm

Width: 7' 9"

Height: 7' 10"

40′ High Cube Container

Pay load: 45,200 lbs or 20,502 kgs

Internal Specification

Cubic Capacity: 2,700cu.ft

Length: 39' 3/8"

76.46cbm

Width: 7' 8 3/8

Height: 8' 8"

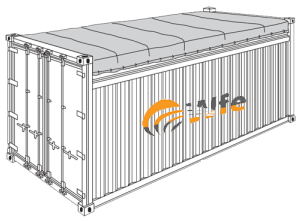

20′ Open Top (Tarpaulin) Container

Payload: 38,100 lbs or 17,282kgs

Internal Specification

Cubic Capacity: 1,126 cu.ft

Length: 9' 5"

31.88cbm

Width: 7' 6 1/8"

Height: 7' 9 5/8"

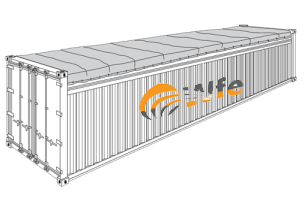

40′ Open Top (Tarpaulin) Container

Payload: 45,250 lbs or 20,525 kgs

Internal Specification

Cubic Capacity: 2,295 cu.ft

Length: 39' 6 1/8"

64.99cbm

Width: 7' 6 3/4"

Height: 7' 5 7/16"

20′ Reefer Container

Payload: 38,118 lbs or 17,290 kgs

Internal Specification

Cubic Capacity: 950 cu.ft

Length: 17' 10"

26.90cbm

Width: 7' 4 1/16"

Height: 7' 3 1/2"

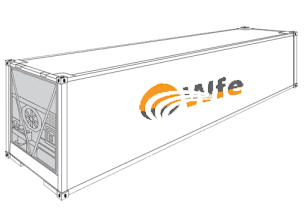

40′ Reefer Container

Payload: 61,078.5 lbs or 27,700kgs

Internal Specification

Cubic Capacity: 2,093.3 cu.ft

Length: 37' 9"

59.3cbm

Width: 7' 5"

Height: 7' 4"

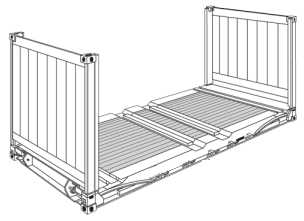

20′ Flatrack Container

Payload: 66,458.7 lbs or 30,140kgs

Internal Specification

Cubic Capacity: 1,154.3 cu.ft

Length: 19' 5"

32.7cbm

Width: 7' 7"

Height: 7' 7"

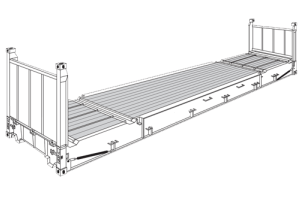

40′ Flatrack Container

Payload: 88,200 lbs or 40,000kgs

Internal Specification

Cubic Capacity: 2,195.7 cu.ft

Length: 39'.88"

62.2cbm

Width: 7' 9"

Height: 7'

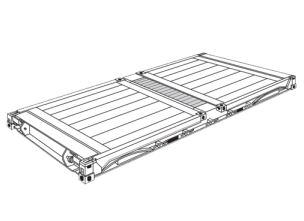

20′ Platform Container

Payload: 68,928.3 lbs or 31,260 kgs

Internal Specification

Length: 19' 9"

Width: 8'

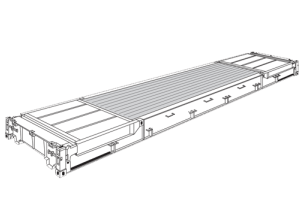

40′ Platform Container

Payload: 86,656.5 lbs or 39,300kgs

Internal Specification

Length: 40'

Width: 8'

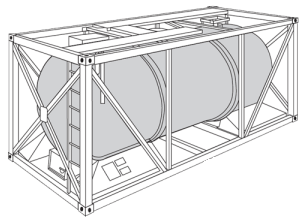

20′ Tank Container (Tanktainer)

Payload: 6,764 Gallons

Internal Specification

Cubic Capacity: 904 cu.ft

Length: 20'

Width: 8'

Height: 8' 6"

25.6cbm
